Давайте разберемся в том, что такое зубодолбежный полуавтомат от знатоков СибСталь: Year of manufacture 1991
Processed bore diameter, mm 50…300
Max. work piece diameter, mm 560
Distance between table and spindle, mm 340
Max workpiece lenght, mm 320
Quill diameter of an internal grinding head, mm 125; 100; 80
Distance from surfacing wheelhead nose to spindle flange nose, mm 150…400
Size of grinding wheel, mm 200 x 75 x 63
Workpiece spindle speed range, rpm 60…600
Table movement, mm 800
Main motor power, kW 7,5
Total power required, kW 14,63
Machine dimensions, mm 3535 x 1460 x 1870
Machine weight, kg 6400

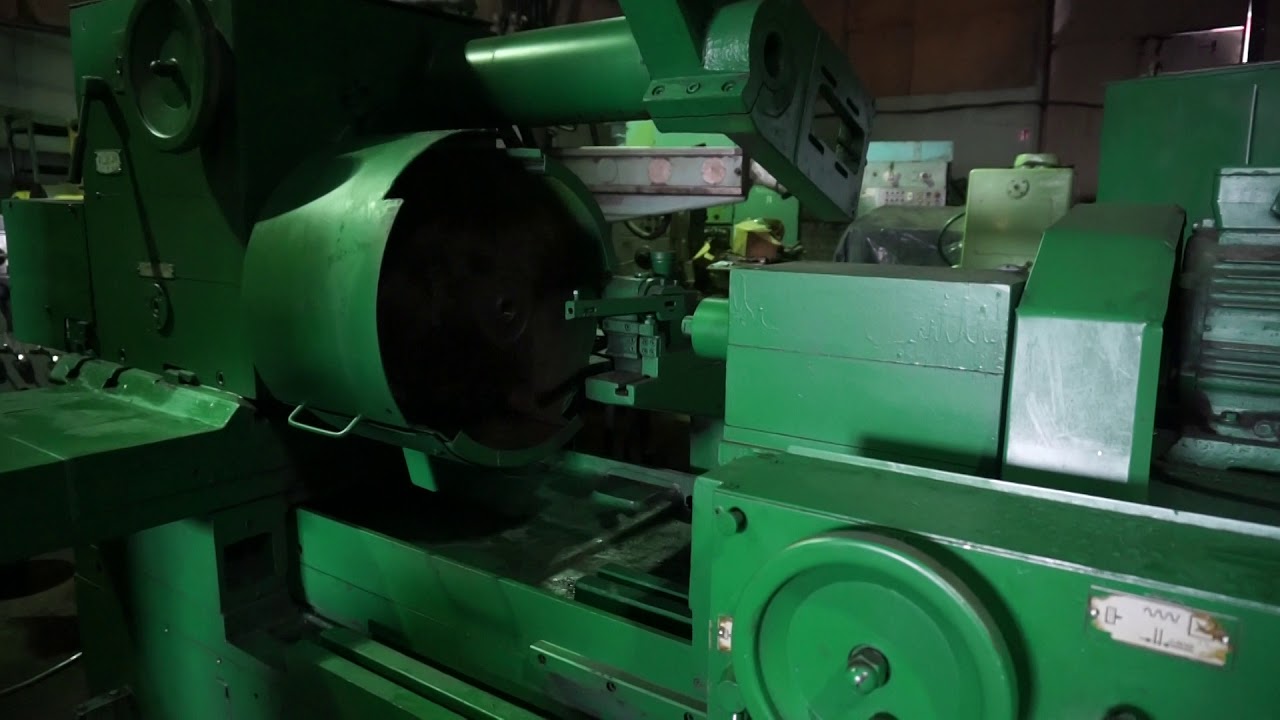

Increased accuracy grinding machine has not been in use before. It is complete and can be inspected under power..
