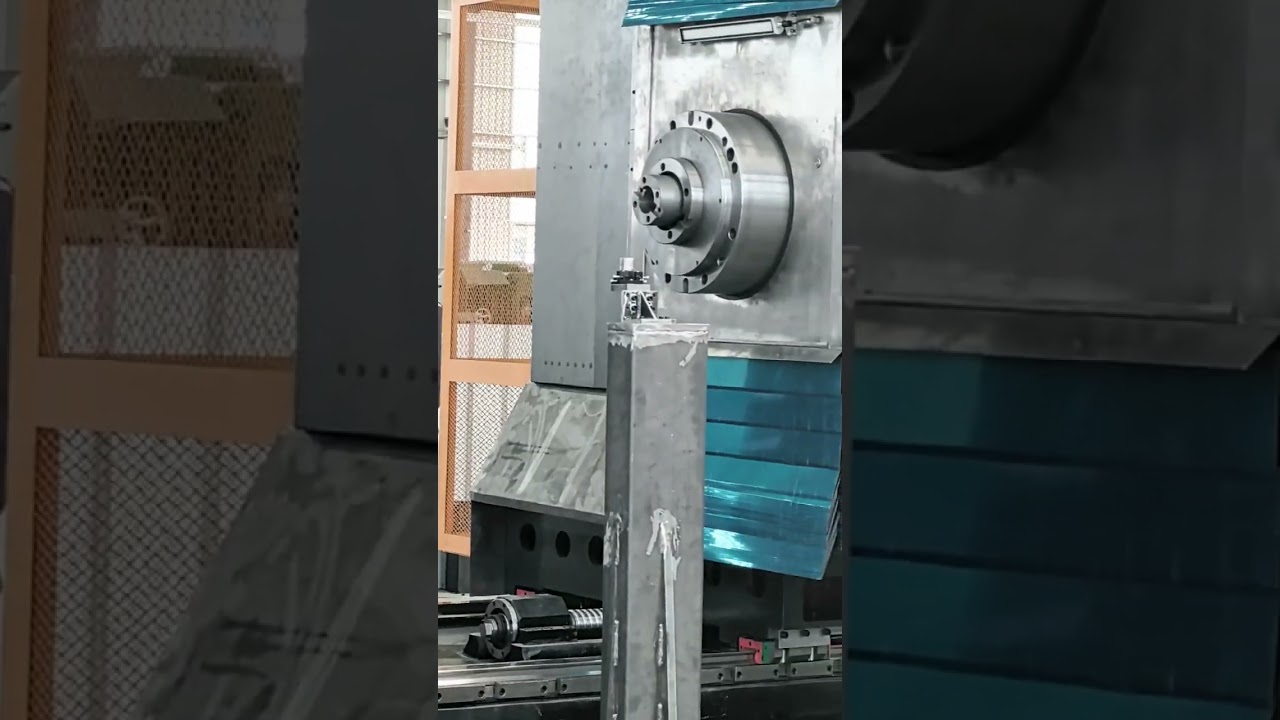

Давайте разберемся в том, что такое универсальный горизонтально фрезерный станок от фрезеровщиков СибСталь: High-precision horizontal boring machines，Высокоточные горизонтально-расточные станки
TK 65 Series of Planer horizontal boring milling machines has five-axis CNC and any four-axis linkage. The X-axis is the horizontal movement of rotary worktable, the Y-axis is the vertical movement of spindle box, the Z-axis is the longitudinal movement of column, the V-axis is the spindle movement, and the B-axis is the rotational movement of rotary worktable.
Model：TK6513，6516 Series
1.Spindle
① Spindle diameter: ᴓ130，160
② Spindle rotating speed: 0.5-1500r/min;
③ Ram size: 420*460mm,480*520mm or customized;
④ Spindle driven motor: 30kw, 51kw；
2.Travel of all axis
① X-Rotary worktable horizontal movement (mm):2000-4500；2000-5000；
② Y-Headstock vertical movement (mm): 1800-3000;2000-4000mm
③ W-Column Longitudinal movement(mm): 1500;
④ Z- Spindle axisal movement(mm): 800;900;
⑤ V-Ram:800;900;
⑥ B- Worktable rotation movement;
3.Rotary worktable
Max.load of worktable(kg): 8000,10000,20000,40000,60000;
Worktable size: 1000*1250; 1250*4000; 1400*1600; 1600*1800; 1800*2000;2000*2500; 2500*3000；
4.CNC Control system
① German simens 828D numerical control system /Fanuc/Fagor or customized
② Simens/fanuc /fagor servo motor
5.Optional
① 40 or 60 station ATC
② High pressure water outlet device
③ Face plate：ᴓ630，800；
④ Right angle milling head
⑤ Universal milling head
⑥ Extending milling head
